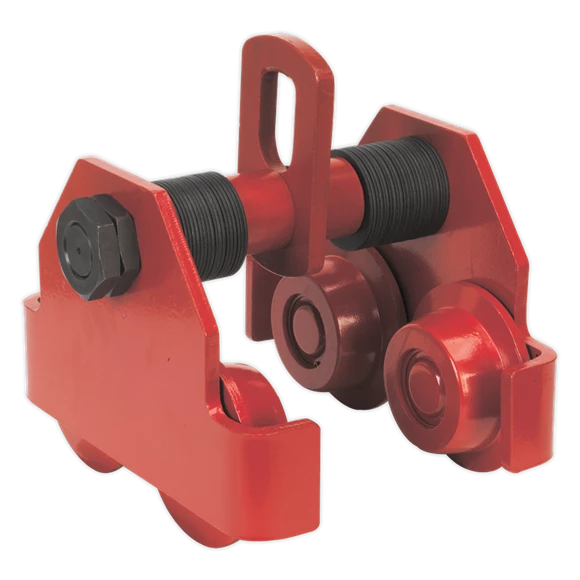

- Suitable for use with our lever hoists or chain blocks.
- Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
- Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
$299.94 Original price was: $299.94.$98.99Current price is: $98.99.

| Nett Weight: | 31kg |
|---|---|
| Capacity: | 3000kg |
| Test Load: | 4500kg |
| Track Width Adjustable Ranges: | 76-203mm |
| Minimum Curve Radius: | 1500mm |
| A: | 344mm |
| B: | 172mm |
| C: | 172mm |
| D: | 145mm |
| E: | 186mm |
| Weight: | 31kg |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 200 x 100 x 7mm |
| Maximum Distance Between Spans: | 4500mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 850 x 150 x 9mm |
| Refer to catalogue for diagram: |
