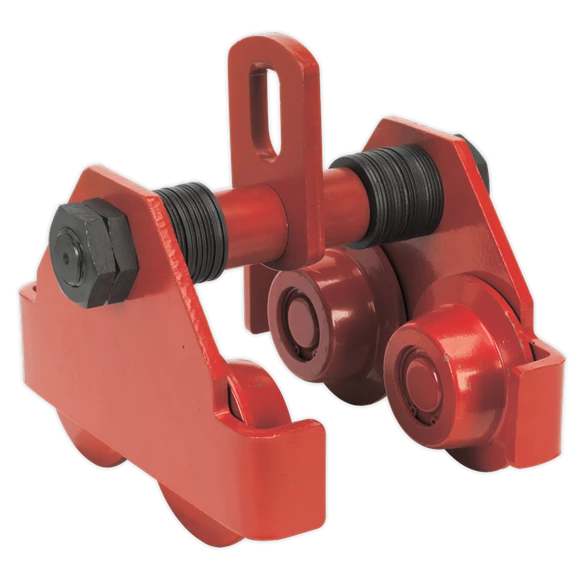

- Suitable for use with our lever hoists or chain blocks.
- Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
- Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
$227.94 Original price was: $227.94.$95.99Current price is: $95.99.

| Nett Weight: | 20kg |
|---|---|
| Capacity: | 2000kg |
| Test Load: | 3000kg |
| Track Width Adjustable Range: | 76-165mm |
| Minimum Curve Radius: | 1300mm |
| A: | 305mm |
| B: | 150mm |
| C: | 150mm |
| D: | 130mm |
| E: | 152mm |
| Weight: | 20kg |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 180 x 100 x 6mm |
| Maximum Distance Between Spans: | 9000mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 350 x 150 x 9mm |
| Refer to catalogue for diagram: |
