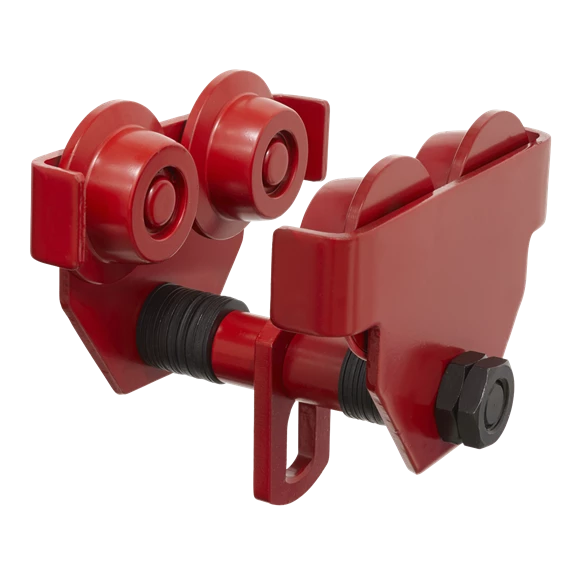

- Suitable for use with our lever hoists or chain blocks.
- Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
- Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
$131.94 Original price was: $131.94.$92.36Current price is: $92.36.

| Nett Weight: | 12kg |
|---|---|
| Capacity: | 1000kg |
| Test Load: | 1500kg |
| Track Width Adjustable Range: | 64-140mm |
| Minimum Curve Radius: | 1000mm |
| A: | 255mm |
| B: | 127.5mm |
| C: | 127.5mm |
| D: | 104mm |
| E: | 128mm |
| Weight: | 13kg |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 125 x 75 x 5.5mm |
| Maximum Distance Between Spans: | 6000mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 250 x 125 x 7.5mm |
| Refer to catalogue for diagram: |
